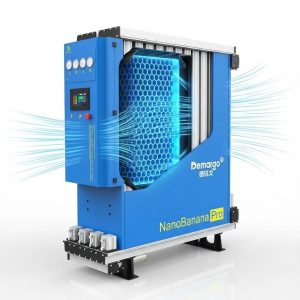

2.6 Nm³/min Modular Adsorption Air Dryer

Product Features

Modular integrated design, compact structure, small footprint, easy installation and maintenance.

Heatless regeneration drying technology, stable performance and low operation cost.

High-efficiency composite adsorbent (activated alumina + molecular sieve 13X), ensuring stable low dew point.

Low pressure loss, low regeneration air consumption, high energy efficiency.

Intelligent PLC touch screen control system, fully automatic operation.

Wide application range, especially suitable for laser cutting and other high-precision air supply equipment.

Product Advantages

Modular design: Small size, light weight, easy for installation and replacement.

Stable dew point: Outlet dew point up to -20℃, fully meeting high-precision industrial needs.

Low energy consumption: Low pressure loss and low regeneration air consumption.

Intelligent control: PLC touch screen controller, fully automatic operation with high reliability.

High-quality materials: High-grade anodized 6063 aluminum alloy tubes, long service life.

Stable performance: Suitable for wide pressure and temperature range, strong adaptability.

Technical Parameters

1.1. Rated Design & Acceptance Standard Conditions

Applicable Fluid: Compressed air / non-corrosive air

Working Principle: Adsorption & regeneration for water removal

Inlet Air Flow: Std. 2.6 Nm³/min

Inlet Air Pressure: Std. 16 bar | Min. 4 bar, Max. 16 bar

Inlet Air Temperature: Std. 35 ℃ | Max. 42 ℃

Cyclone water separator is recommended at the inlet.

Ambient Temperature: Std. 35 ℃ | Min. 2 ℃, Max. 45 ℃

Pressure Drop at Full Load: Std. 0.12 bar

Outlet Air Temperature: 3~5℃ higher than inlet temperature

Outlet Air Dew Point: -20℃

Drying Type: Heatless regeneration

Inlet Connection: G1 (female thread)

Outlet Connection: G1 (female thread)

Net Weight: 38 kg

1.2. Drying Data

Regeneration Air Consumption: ≤ 12.5%

Power Supply: 220 V AC, 50 Hz

Power Consumption: 0.15 KW

Adsorption Modules: 2 PCS

Adsorbent Weight: 14 kgs

Adsorbent Type: Activated alumina + Molecular sieve 13X, 3-5mm

Adsorption Tube Material: National standard anodized 6063 aluminum alloy

1.3. Adsorption Inlet System Control Components

Inlet Guide Valve Body | DY-MJT-2P | DEMARGO | 1 set

Inlet Seal Assembly | DYJQ-ZL-032 | DEMARGO | 2 sets

1.4. Adsorption Exhaust System Control Components

Exhaust Manifold Valve Body | DY-MPT-2P | DEMARGO | 1 set

Exhaust Control Valve | DY-MPF-32 | DEMARGO | 2 pcs

Exhaust Seal Assembly | DYPQ-ZL-032 | DEMARGO | 2 sets

Muffler | DYSLI-004-B | DEMARGO | 2 pcs

1.5. Adsorption Outlet System Control Components

Outlet Guide Valve Body | DY-MCT-2P | DEMARGO | 1 set

Check Seal Assembly | DYDX-ZL-032 | DEMARGO | 2 sets

1.6. Control System Electrical Components

Dryer Controller System | DY-PLC028-01 (Touch Screen) | DEMARGO | 1 set

Power Supply | LRS75-24 | Mean Well | 1 pc

Solenoid Valve | DY-DCFT001 | DEMARGO | 2 sets

1.7. Instruments & Meters

Compressed Air Outlet Pressure Gauge | YZ60-16 bar | DEMARGO | 2 pcs | Zhejiang, China

Dew Point Analyzer | PDP series +40～-60℃ | SUTO | Optional | Shenzhen, China

Remark

To ensure more stable product performance, our company reserves the right to freely replace components in the configuration list with more stable parts of other brands or models without prior notice.

The actual product shall prevail.

Core Application & Industries

Core Purpose

Provide clean, dry, low-dew-point compressed air for industrial pneumatic systems, effectively removing moisture, oil and impurities to ensure stable operation of pneumatic equipment.

Application Industries

Laser cutting & laser welding industry

Electronics & electrical manufacturing

Pharmaceutical & food processing

Precision machinery & automation equipment

Packaging & printing industry

General industrial compressed air systems
